ESP32-S3 1.69inch Touch Display Development Board, 240×280 Pixels, Micro LCD Display with ESP32-S3, 262K Color, Compact Size, Accelerometer and Gyroscope Sensor (ESP32-S3-Touch-LCD-1.69)

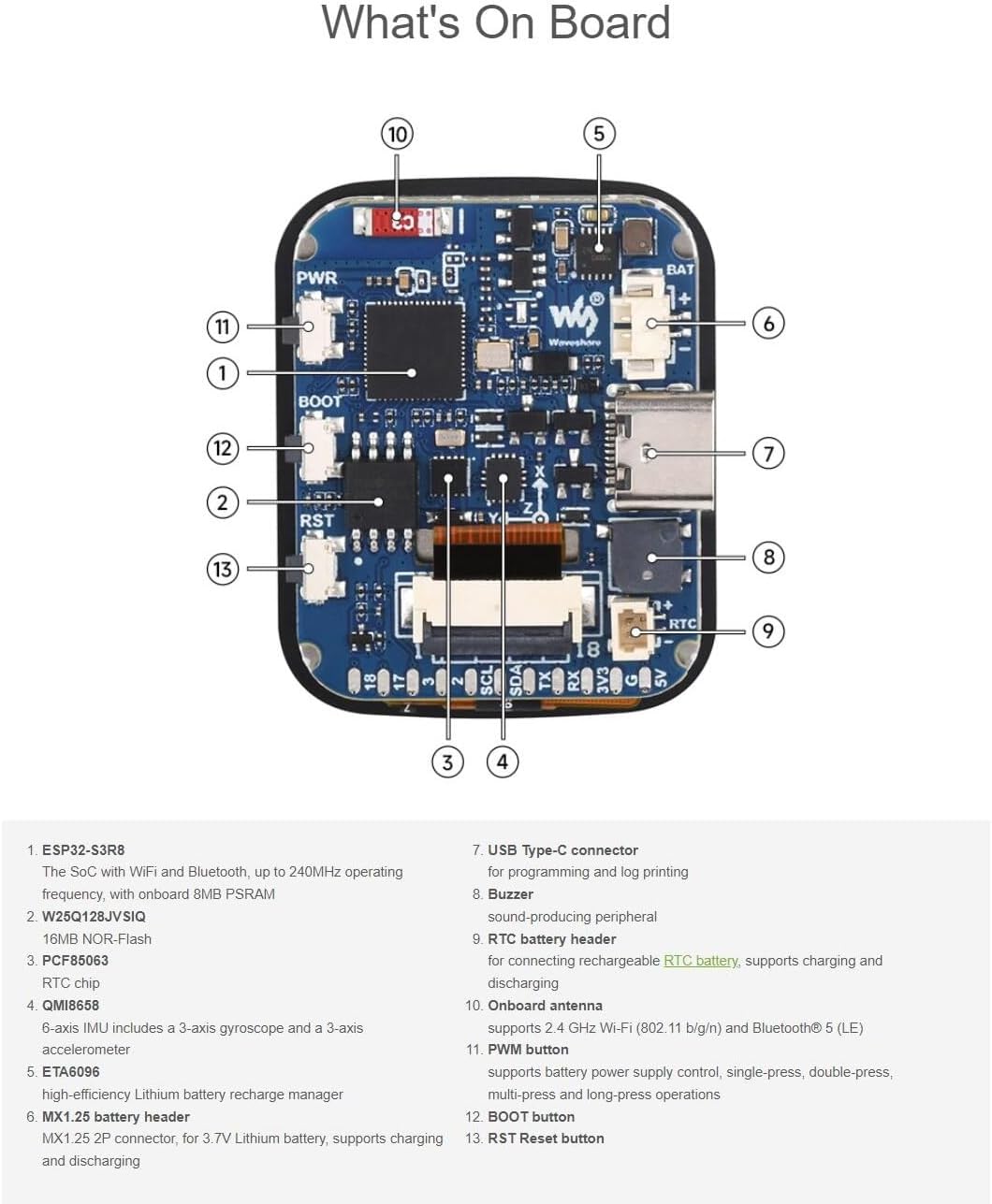

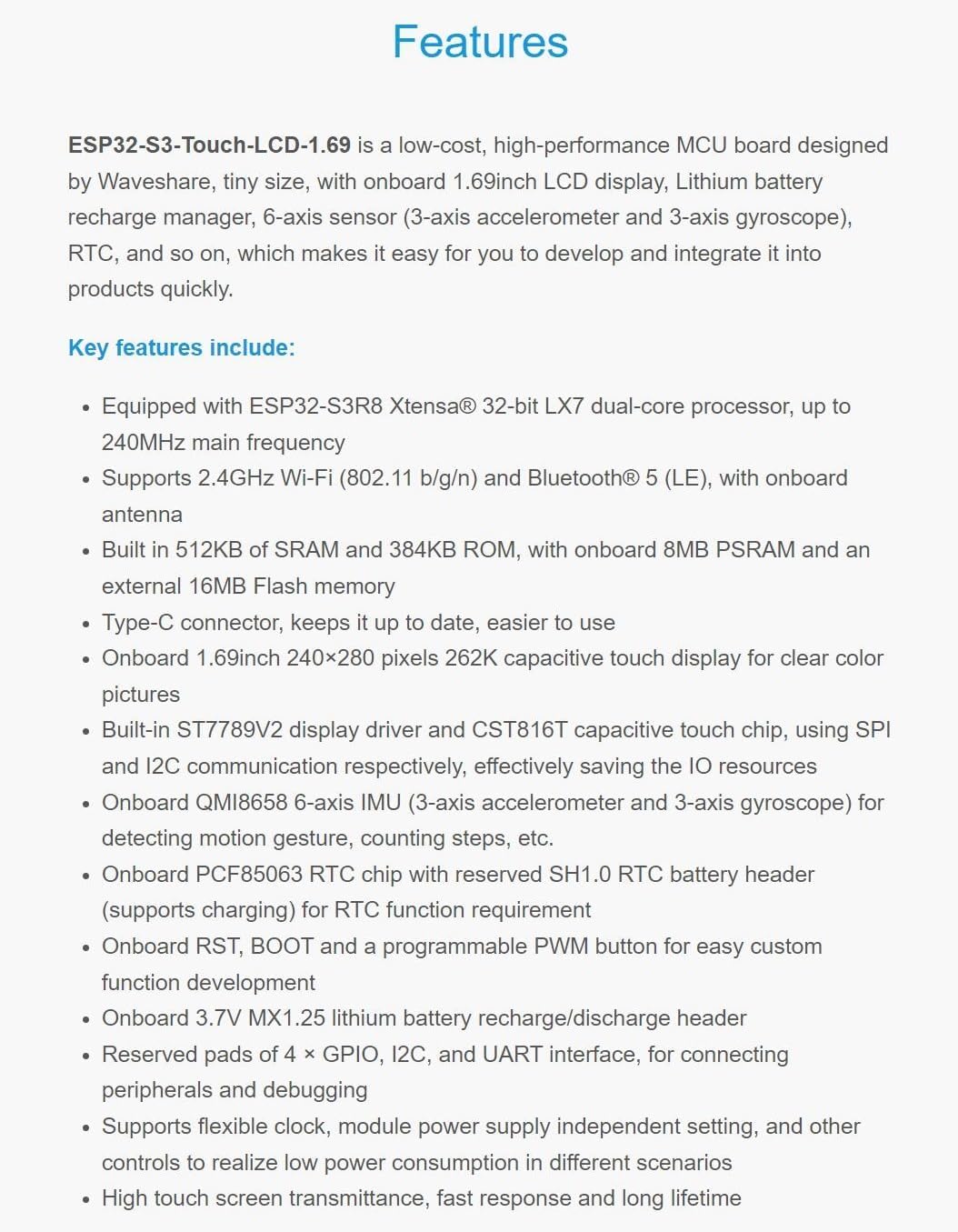

Introduction ESP32-S3-Touch-LCD-1.69 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.69inch LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, and so on, which makes it easy for you to develop and integrate it into products quickly. Features ● Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency ● Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna ● Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory ● Type-C connector, keeps it up to date, easier to use ● Onboard 1.69inch 240×280 pixels 262K capacitive touch display for clear color pictures ● Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources ● Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. ● Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement ● Onboard RST, BOOT and a programmable PWM button for easy custom function development ● Onboard 3.7V MX1.25 lithium battery recharge/discharge header ● Reserved pads of 4 × GPIO, I2C, and UART interface, for connecting peripherals and debugging ● Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios ● High touch screen transmittance, fast response and long lifetime PACKAGE CONTENT 1. ESP32-S3-Touch-LCD-1.69 x1

• Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
• Type-C connector, keeps it up to date, easier to use. Onboard 3.7V MX1.25 lithium battery recharge/discharge header. Reserved pads of 4 × GPIO, I2C, and UART interface, for connecting peripherals and debugging
• Onboard 1.69inch 240×280 pixels 262K capacitive touch display for clear color pictures. Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement
• Onboard RST, BOOT and a programmable PWM button for easy custom function development. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios. High touch screen transmittance, fast response and long lifetime
